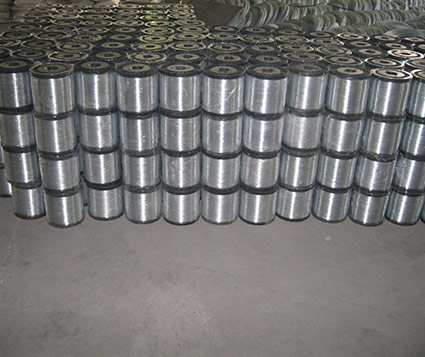

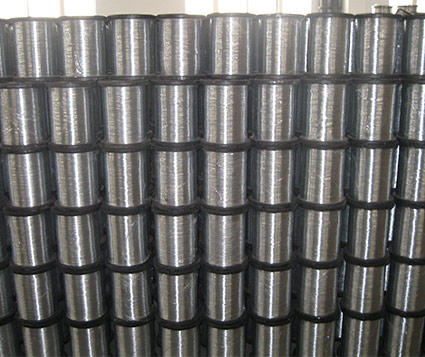

Spool Galvanized Iron Wire Material:Q195 SAE1008
> Electro galvanized wire
> Hot dipped galvanized wire
>Black annealed iron wire
Wire Diamater: 0.20mm-2.0mm
ZIN COATING: Electro Galvanize Wire 8-20G/M2
Hot Dipped Galvanized Wire 30-350G/M2
Tensile Strength 35-50KG/MM2
Features:
1. Excellent straightness
2. Uniform and beautiful surface condition
3. Excellent coil-forming ability
4. High elasticity and high fatigue resistance
5. Strong corrosion resistance against exposure to the toughest atmosphere
6. Strong acid resistance & alkali resistance
Applications of spool galvanized iron wire: This kind of industrial wire is mainly used in construction, making of wire nails and wire ropes, express way fencing, binding of flowers and wire mesh weaving.
| Model | External diameter(D2) | Total height (L1) | Internal height (L2) | Axial hole diameter (H) | Inner cylinder diameter (D2) | Weight (g) | Per axis load (kgs) |
| DIN100 | 100mm | 100mm | 90mm | 18mm | 50mm | 100 | 5 |
| DIN125 | 125mm | 120mm | 100mm | 22mm | 65mm | 190 | 8 |
| DIN160 | 160mm | 160mm | 130mm | 22mm | 120mm | 350 | 10 |
| DIN200 | 200mm | 200mm | 160mm | 22mm | 125mm | 600 | 15 |
| DIN250 | 250mm | 200mm | 160mm | 22mm | 160mm | 930 | 20 |
