358 Fence.High security fence,Anti-Climb fence

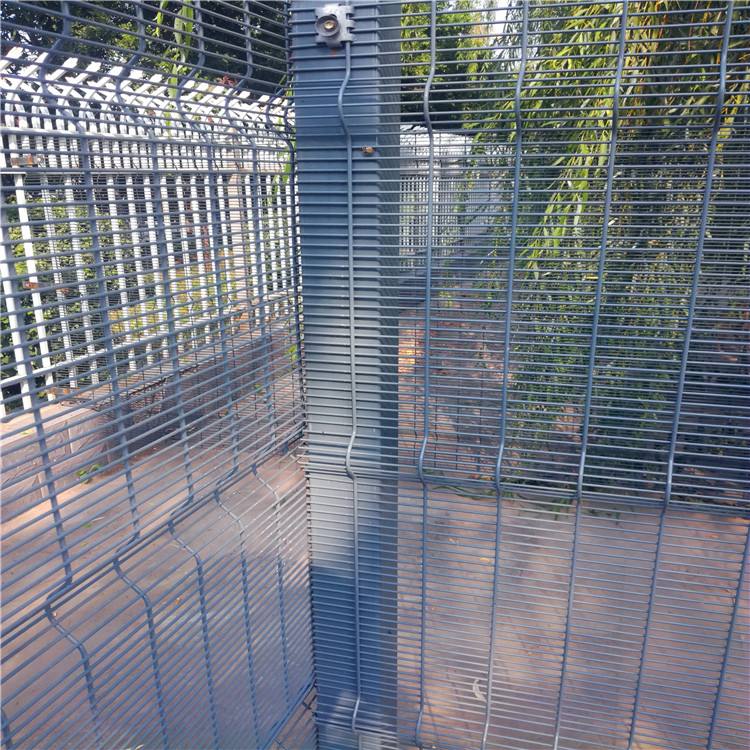

High security fencing , Prison Mesh Fencing or 358 Mesh Fencing as it is also known, is a highly robust steel Mesh Fencing system. It consists of horizontal and vertical mesh wires which are positioned close together to prevent people from fitting their fingers through the apertures, to ultimately climb the fencing.
Features:
Anti-climbing: more small openings, no toe or finger holds.
Anti-cut: robust wire and welded joints make cutting very difficult by bolt cutters and wire cutters.
High strength welded at each intersection.
Durable: covering Galfan and polymer powder coating ensure a long service life.
Mesh fencing specially configured to provide maximum visibility, especially used for emergency and electronic detection systems.
Specifications:
| Panel Size (Height × Width) | Fence Post (Height × Size × Thick ) | Clamp Bar (Height × Width × Thick ) | Inter or corner Clamp No (PCS) |
| 2007mm ×2515mm | 2700mm ×60×60×2.5mm | 2007mm×60mm ×5.00mm | 7 or 14 |
| 2400mm× 2515mm | 3100mm×60×60×2.5mm | 2400mm×60mm ×5.00mm | 9 or 18 |
| 2997mm×2515mm | 3800mm×80×80×2.5mm | 2997mm×80mm ×6.00mm | 11 or 22 |
| 3302mm ×2515mm | 4200mm×80×80×2.5mm | 3302mm×80mm ×6.00mm | 12 or 24 |
| 3607mm ×2515mm | 4500mm×100×60×3.0mm | 3607mm×100mm×7.00mm | 13 or 26 |
| 3607mm ×2515mm | 4500mm×100×100×3.0mm | 3607mm×100mm×7.00mm | 13 or 26 |
| 4204mm × 2515mm | 5200mm×100×100×4.0mm | 4204mm×100mm×8.00mm | 15 or 30 |
| 4496mm × 2515mm | 5500mm×100×100×5.0mm | 4496mm×100mm×8.00mm | 16 or 32 |
| 5207mm ×2515mm | 6200mm×120×120×5.0mm | 5207mm×100mm×8.00mm | 18 or 36 |
Note: Special size and specifications can be made according to customers requires.
