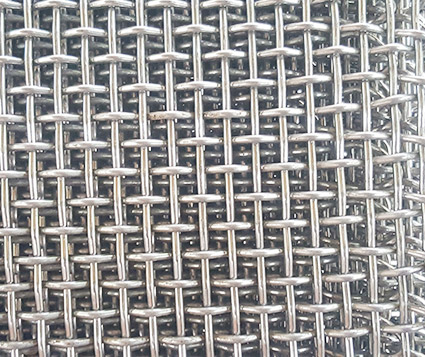

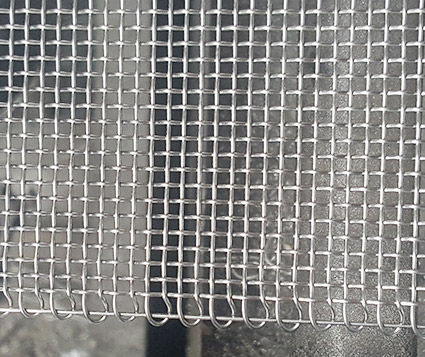

SS Square Wire Mesh

+86 311 6769 5007
+86 311 6769 5007
jiefan@jiefanwiremesh.com

Product Description

We produce stainless steel wire mesh from first class stainless steel material in SUS/AISI 201 202 302 304 310 310S 316 316L 321 430 etc.

Stainless steel wire mesh with its excellent resistance against acid, alkali, heat and corrosion, extensively used in processing of oil, chemical, food, making wire mesh filter, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace and machine making etc.

Product information:
1) product range : usually, manufactured in 30m ( up to 200m) long and in width of 36’ 48’ 1m 1.2m 1.5m 2.0m etc. or cut to length panels as per client’s requirement.
2) Packing: water-proof paper, woven bag and also can be made as per client’s requirement.
3) Weave: Plain Weave, Twill Weave ; Plain Dutch Weave, Dutch Twill Weave.
4) Mesh counts: 1 mesh to 635 mesh.

Meshes per Linear inch	Wire diameter		Width of opening		Open area
Meshes per Linear inch	inch	mm	inch	mm	percent
1×1	0.157	4	0.84	21.4	71
2×2	0.118	2.5	0.38	10.2	64
3×3	0.079	2	0.25	6.4	58
4×4	0.063	1.6	0.187	4.75	56
4×4	0.047	1.19	0.203	5.16	65.9
5×5	0.055	1.4	0.14	3.68	52
6×6	0.047	1.2	0.12	3.03	51
8×8	0.43	1.1	0.08	2.08	42
10×10	0.039	1	0.06	1.54	36
10×10	0.02	0.51	0.08	2.03	64
12×12	0.023	0.584	0.06	1.52	51.8
12×12	0.02	0.508	0.063	1.6	57.2
14×14	0.023	0.584	0.048	1.22	45.2
14×14	0.02	0.508	0.051	1.3	51
16×16	0.018	0.457	0.0445	1.13	50.7
18×18	0.017	0.432	0.0386	0.98	48.3
20×20	0.02	0.508	0.03	0.76	36
20×20	0.016	0.406	0.034	0.86	46.2
24×24	0.014	0.356	0.0277	0.7	44.2
30×30	0.013	0.33	0.0203	0.52	37.1
30×30	0.012	0.305	0.0213	0.54	40.8
30×30	0.009	0.229	0.0243	0.62	53.1
35×35	0.011	0.279	0.0176	0.45	37.9
40×40	0.01	0.254	0.015	0.38	36
50×50	0.009	0.229	0.011	0.28	30.3
50×50	0.008	0.203	0.012	0.31	36
60×60	0.0075	0.191	0.0092	0.23	30.5
60×60	0.007	0.178	0.0097	0.25	33.9
70×70	0.0065	0.165	0.0078	0.2	29.8
80×80	0.0065	0.165	0.006	0.15	23
80×80	0.0055	0.14	0.007	0.18	31.4
90×90	0.005	0.127	0.0061	0.16	30.1
100×100	0.0045	0.114	0.0055	0.14	30.3
100×100	0.004	0.102	0.006	0.15	36
100×100	0.0035	0.089	0.0065	0.17	42.3
110×110	0.004	0.1016	0.0051	0.1295	30.7
120×120	0.0037	0.094	0.0046	0.1168	30.7
150×150	0.0026	0.006	0.0041	0.1041	37.4
160×160	0.0025	0.0635	0.0038	0.0965	36.4
180×180	0.0023	0.0584	0.0033	0.0838	34.7
200×200	0.0021	0.0533	0.0029	0.0737	33.6
250×250	0.0016	0.0406	0.0024	0.061	36
270×270	0.0016	0.0406	0.0021	0.0533	32.2
300×300	0.0015	0.0381	0.0018	0.0457	29.7
325×325	0.0014	0.0356	0.0017	0.0432	30
400×400	0.001	0.0254	0.0015	0.037	36
500×500	0.001	0.0254	0.001	0.0254	25
635×635	0.0008	0.0203	0.0008	0.0203	25
