Welded wire mesh is widely used in industry, farming,
construction, transportation and mining for protection
of structure, safety segregation, keeping of poultry
and livestock, and decorations etc.
DESCRIPTION:

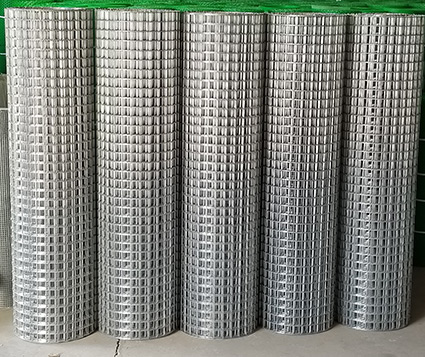

Welded wire mesh is made of high quality iron wire through automatic process and sophisticated welding technique, laid horizontally and vertically, individually welded at every intersection. the end products is level and flat with sturdy structure. welded wire mesh is extensively used in industry and agriculture, building, transportation and mining for all such purposes as poultry houses, egg baskets, runway enclosures, draining rack, fruit drying screen, fence.
For finish,we can supply the following kinds:
*Hot-dipped galvanised after welding
*Hot-dipped galvanised before welding
*Eletric-galvanised aftre welding
*Eletric-galvanised before welding
*Pvc-coated
*In stainless steel
Packing:
Each roll packed by water proof paper
Each roll shrink wrapped
Other packing method may be acceptted after confirmation
Other sizes be produced after confirmation

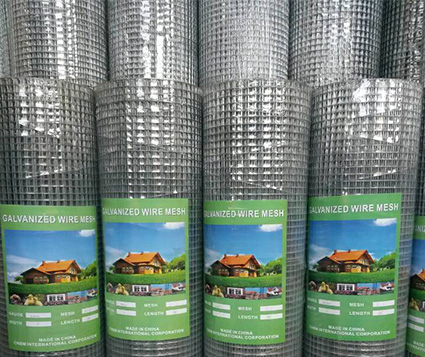

Mini roll normally in the length of 3m, 5m and 10m. shrink wrapped with color label and bracode,then into cartons. they are ideal for pet cage, window production, tree guard. other home and garden usage.
Multiple carton:
outer carton can protect the inner box and goods, easy to transport and stock, inner box is very nice for display in shops.
| STANDARD ROLL LENGTH 5M 10M 15M 30M 45M LONG AND 0.1M-2.5M WIDE | ||
| MESH | WIRE GAUGE | |
| INCH | MM | BWG |
| 1/4''X1/4'' | 6.4MMX6.4MM | 26 25 24 23 22 21 20 19 |
| 3/8''X3/8'' | 9.5MMX9.5MM | 25 24 23 22 21 20 19 18 |
| 1/2''X1/2'' | 12.7MMX12.7MM | 22 21 20 19 18 17 16 15 |
| 5/8''X5/8'' | 16MMX16MM | 22 21 20 19 18 17 16 |
| 3/4''X3/4'' | 19MMX19MM | 20 19 18 17 16 15 14 |
| 6/7''X6/7'' | 21.8MMX21.8MM | 21 20 19 18 17 16 |
| 1''X1'' | 25.4MMX25.4MM | 16 15 14 13 12 11 |
| 1''X1-1/2'' | 25.4MMX38.1MM | 15 14 13 12 11 |
| 1.5''X1.5'' | 38.1MMX38.1MM | 16 15 14 13 12 11 10 |
| 1''X2'' | 25.4MMX50.8MM | 17 16 15 14 13 12 |
| 2''X2'' | 50.8MMX50.8MM | 16 15 14 13 12 11 10 9 |
| 2''X3'' | 50.8MMX76.2MM | 14 13 12 11 10 9 8 |
| 2''X6'' | 50.8MMX152.4MM | 14 13 12 |
| 3''X3'' | 76.2MMX76.2MM | 11 10 9 8 7 |
| 3''X4'' | 76.2MMX101.6MM | 11 10 9 8 7 |
| 4''X4'' | 101.6MMX101.6MM | 14 13 12 11 10 9 8 7 6 |
| 6''X6'' | 152.4MMX152.4MM | 12 11 10 9 8 7 6 |
| 8''X8'' | 203.2MMX203.2MM | 10 9 8 7 6 5 |
