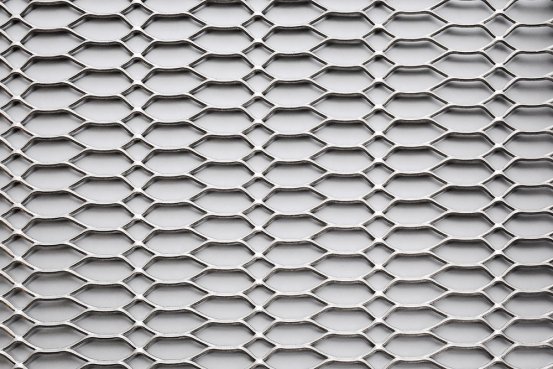

Hot Dipped Galvanized Expanded Metal Mesh/Gothic Mesh
Expanded metal mesh also known as metal mesh, diamond mesh, iron mesh, metal mesh, heavy metal mesh, pedal mesh, perforated plate, aluminum mesh, stretched mesh,stainless steel mesh, granary mesh, antenna mesh, filter mesh, audio mesh, etc.
Name | Galvanized expanded metal gothic mesh |
Material | Galvanized |
Color | Customized |
Thickness | 0.5-14mm |
Strand width | 0.5-8mm |
LWD | MAX300mm |
SWD | MAX120mm |

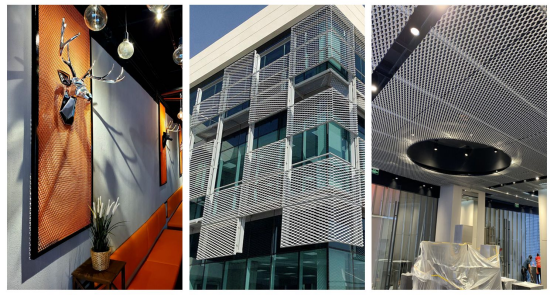

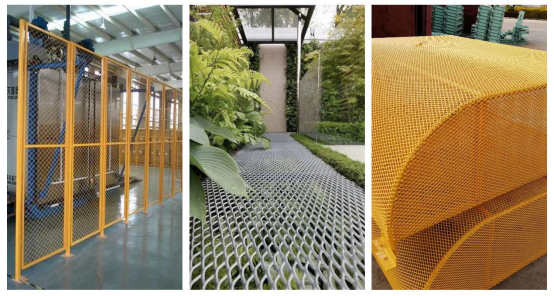

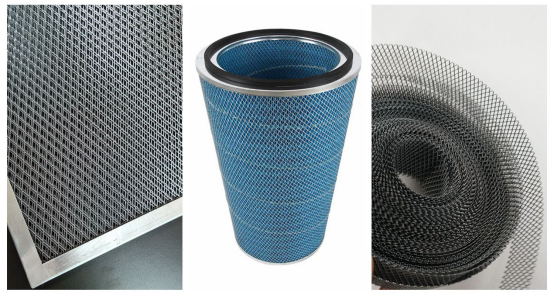

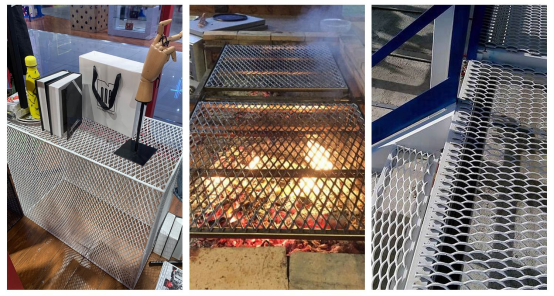

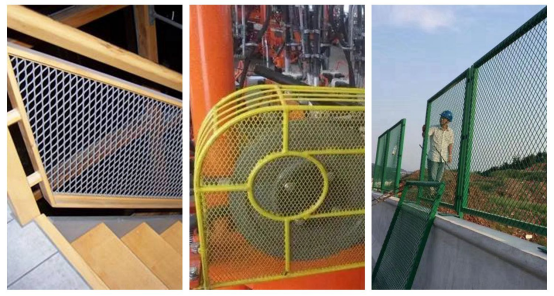

Application scenarios
Stretched metal mesh is widely used in the construction of roads, railways, civil buildings, water conservancy, various machinery, electrical appliances, window protection, aquaculture, etc. Various special specification products can be customized according to customer requirements
Specification
Material: Ordinary carbon steel plate, Galvanized steel plate, aluminum plate, stainless steel plate, aluminum-magnesium alloy plate, copper plate, nickel plate,etc.
Surface treatment: PVDF, Powder/PVC coated, Anodized, Hot-dip/Electro Galvanized, Polishing, Teflon spraying, etc.
Color: Natural (Dark black), White, Silver, Black, Gray, Golden, etc.
Standard size of Stretched Steel Mesh | ||||||
Thickness (mm) | SWD (mm) | LWD (mm) | Strand width (mm) | Width (m) | Length (m) | Weight (kg/m2) |
1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
4 | 60 | 120 | 4 | 2 | 7.5 | 4.0 |
4 | 80 | 180 | 4 | 2 | 10 | 3.0 |
4 | 100 | 200 | 4 | 2 | 12 | 2.5 |
4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
5 | 75 | 150 | 5 | 2 | 10 | 3.0 |
6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 |
