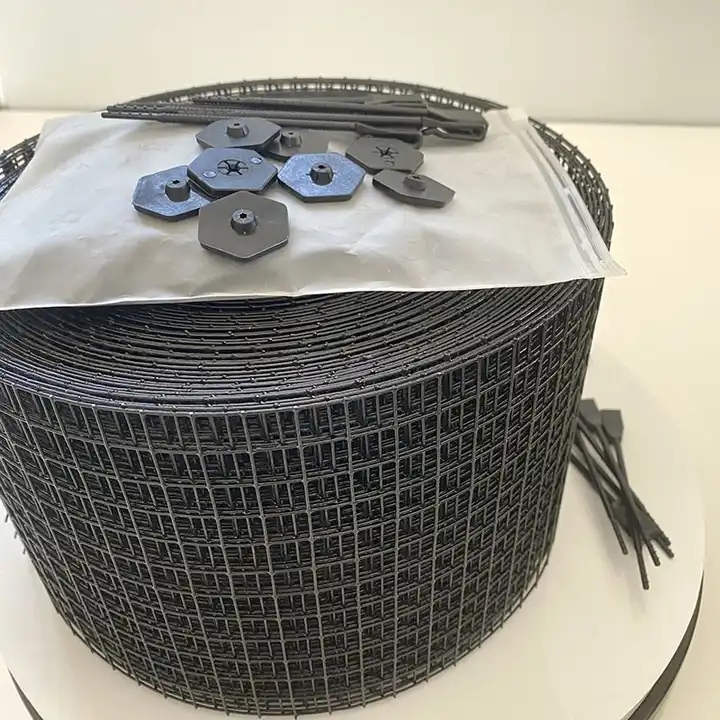

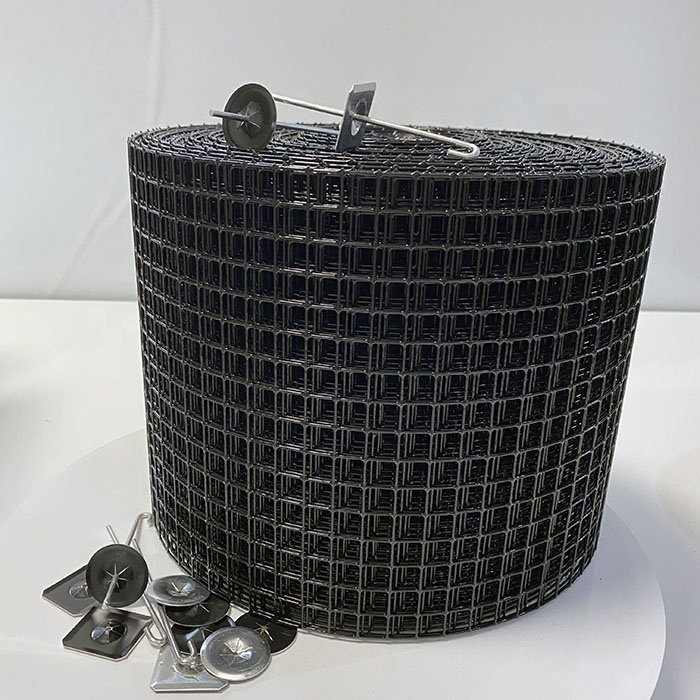

Solar panel bird barrier, which includes a combination of mesh and clips, is designed to stop pest birds and prevent leaves and other debris from getting under solar arrays, protecting the roof, wiring, and equipment from damage. It also ensures unrestricted airflow around panels to avoid fire hazard caused by debris. The mesh qualify the features of long-lasting, durable, non-corrosive. This no drill solution provides long lasting and discreet exclusion to protect home solar panel.
Contact at:Salina@jiefanwiremesh.com
Popular Specification For Solar Panel Mesh | |
Wire Diameter | 0.7mm 0.8mm 0.9mm 1.0mm 1.1mm 1.2mm |
Mesh Opening | 1/2” mesh, 1" X 1" mesh, 1/2”X 1"mesh, |
Width | 0.2m/8inch, 0.25m/10inch, 0.3m/12inch |
Length | 15m/50ft, 20m/66ft, 25m/82ft, 30m/100ft |
Material | hot dipped galvanized, PVC coated, stainless steel |
Remark: Specification can be customized according to customers' request | |

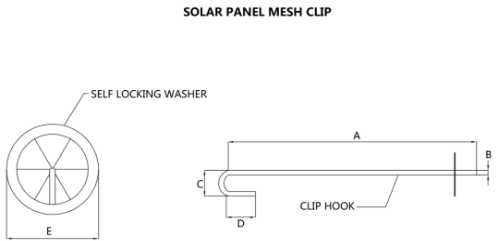

Solar Panel Mesh Clip
Solar clips are used to secure wire mesh to solar panels. The number of clips needed will depend on the solar panel system. The clip is designed to protect the integrity of expensive solar arrays. The clips don’t pierce the solar panels and will firmly hold wire mesh screen to the module assembly preventing squirrels and rodents from damaging the interconnection wires and birds from building nests under the solar panel.
PART NO. | CLIP DIMENSTIONS IN DETAILED PART | |||||||||
stainless steel or galvanized | A Overall Length | B Diameter | C Width | D Height | E Washer Diameter | |||||
in. | mm. | in. | mm. | in. | mm. | in. | mm. | in. | mm. | |
Clip 6 | 4.87 | 124 | 0.8 | 2 | 0.38 | 9.7 | 0.38 | 9.7 | 1 | 25.4 |
Remark | any other specification can be customized according to customers' request | |||||||||
