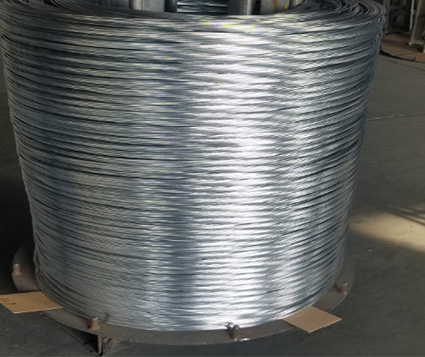

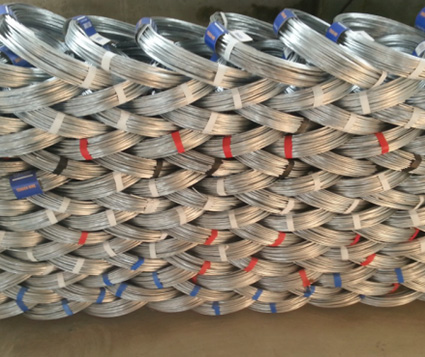

Galvanized Iron Wire

+86 311 6769 5007
+86 311 6769 5007
jiefan@jiefanwiremesh.com

Product Description

ASSORTMENTS	SIZE	T/S(KGS/MM2)
ELECTRIC-GALVANIZED	BWG6-BWG32	30-55
HOT DIPPED GALVANIZED	BWG6-BWG32	30-55

PACKING of galvanized iron wire :
500KGS-800KGS PER COIL (COIL LINED WITH WAX PAPER OR PVC STRIPES AND WRAPPED WITH HESSIAN CLOTH).

Packing ID: 50CM OD:80CM
STANDARD:
COULD BE MADE ACCORDING TO EN OR ASTM OR AT CUSTOMERS’ REQUIREMENTS.

Usage: mainly telecommunication equipment and materials, medical equipment and device, weaving of wire mesh, steel rope, filtration mesh, high-pressure pipe, construction, arts and crafts, etc.

Galvanized iron wire sizes: thermal galvanized iron wire: 8#-16#; electric galvanized iron wire: 8#-36#.

Packing: Galvanized wire can be supplied in the form of coil wire, bobbins wire, spool wire, cut wire or tie wire to meet our customers different needs.

	SWG		BWG		AWG
WIRE GAUGE	INCH	MM	INCH	MM	INCH	MM
7/0	0.5	12.7
6/0	0.464	11.786			0.58	14.732
5/0	0.432	10.973	0.5	12.7	0.5156	13.119
4/0	0.4	10.16	0.454	11.532	0.46	11.684
3/0	0.372	9.49	0.425	10.795	0.4096	10.404
2/0	0.348	8.839	0.38	9.625	0.3648	9.266
0	0.324	8.23	0.34	8.639	0.3249	8.252
1	0.3	7.62	0.03	7.62	0.2893	7.348
2	0.276	7.01	0.284	7.214	0.2576	6.544
3	0.252	6.401	0.259	6.579	0.2294	5.827
4	0.232	5.893	0.283	6.045	0.2043	5.189
5	0.212	5.385	0.22	5.588	0.1819	4.621
6	0.192	4.877	0.203	5.156	0.162	4.115
7	0.176	4.47	0.18	4.572	0.1443	3.665
8	0.16	4.406	0.165	4.191	0.1285	3.264
9	0.144	3.658	0.148	3.759	0.1144	2.906
10	0.128	3.215	0.134	3.404	0.1019	2.588
11	0.116	2.946	0.12	3.048	0.0907	2.305
12	0.104	2.642	0.109	2.769	0.0808	2.053
13	0.092	2.337	0.095	2.413	0.072	1.828
14	0.08	2.032	0.083	2.108	0.0641	1.628
15	0.072	1.829	0.072	1.829	0.0571	1.45
16	0.064	1.626	0.065	1.651	0.0508	1.291
17	0.056	1.422	0.058	1.473	0.0453	1.15
18	0.048	1.219	0.049	1.245	0.0403	1.024
19	0.04	1.016	0.042	1.067	0.0359	0.912
20	0.036	0.914	0.035	0.839	0.032	0.812
21	0.032	0.813	0.032	0.831	0.0285	0.723
22	0.028	0.711	0.028	0.711	0.02535	0.644
23	0.024	0.61	0.025	0.635	0.02256	0.573
24	0.022	0.559	0.022	0.559	0.02011	0.511
25	0.02	0.508	0.02	0.508	0.01791	0.455
26	0.018	0.457	0.018	0.457	0.01594	0.405
27	0.0164	0.417	0.016	0.406	0.0142	0.361
28	0.0148	0.376	0.014	0.356	0.01264	0.321
29	0.0136	0.345	0.013	0.33	0.01126	0.286
30	0.0124	0.315	0.012	0.305	0.01003	0.255
31	0.0116	0.295	0.01	0.254	0.00893	0.227
32	0.0108	0.274	0.009	0.229	0.00795	0.202
33	0.01	0.254	0.008	0.203	0.00708	0.18
34	0.0092	0.234	0.007	0.178	0.0063	0.16
35	0.0084	0.213	0.005	0.127	0.00561	0.143
36	0.0076	0.193	0.004	0.102	0.005	0.127

Galvanized Iron Wire
